Vehicle Re-Identification (ReID)

Re-identify vehicles across cameras using deep learning embeddings.

Overview

Vehicle ReID matches cars by visual appearance, independent of license plates. This is useful when plates are occluded or unreadable.

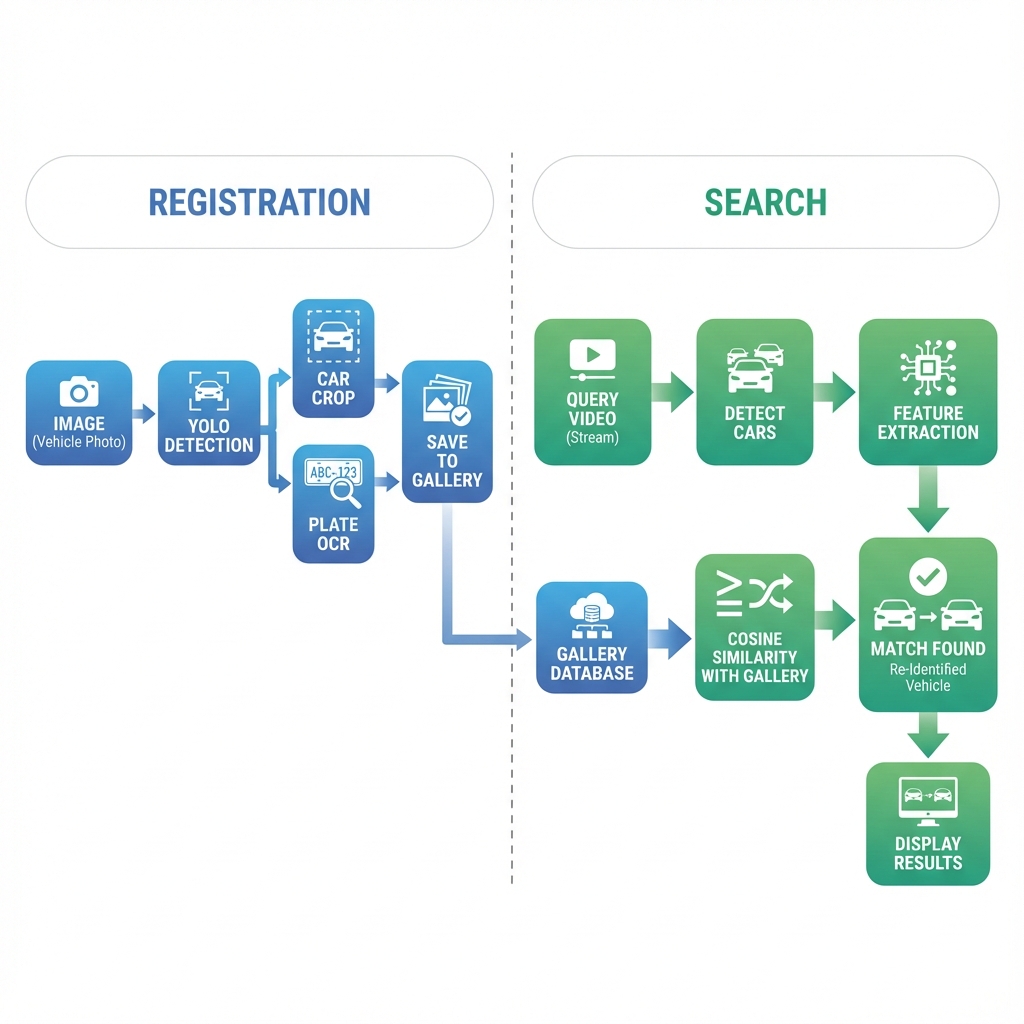

ReID Architecture

How It Works

1. Registration

Upload image/video → Detect cars → OCR plates → Save crops to gallery

Cars are indexed by their plate ID in data/gallery/{plate_id}/.

Query video → Detect cars → Extract features → Match with gallery → Return results

Each detected car is compared to the gallery using cosine similarity.

Model Architecture

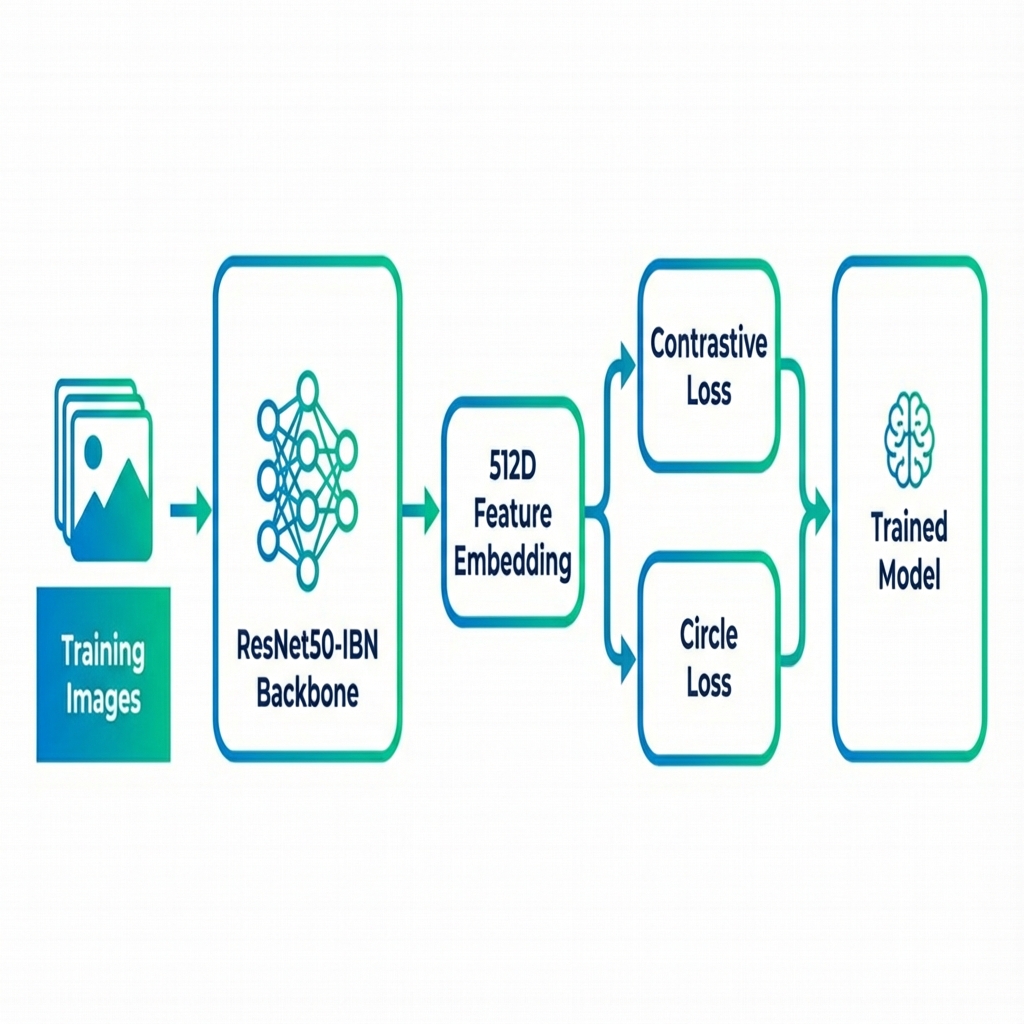

Training Architecture

ResNet50-IBN Backbone

Instance-Batch Normalization combines:

  • Instance Norm: Removes appearance variations (lighting, color)
  • Batch Norm: Preserves discriminative features
class IBN(nn.Module):
    def __init__(self, planes):
        self.IN = nn.InstanceNorm2d(planes // 2, affine=True)
        self.BN = nn.BatchNorm2d(planes // 2)

    def forward(self, x):
        split = x.chunk(2, 1)
        out1 = self.IN(split[0])
        out2 = self.BN(split[1])
        return torch.cat((out1, out2), 1)

Loss Functions

Contrastive Loss

Pulls similar vehicles together, pushes different vehicles apart:

$$L_{contrastive} = \frac{1}{2N} \sum_{n=1}^{N} (y_n \cdot d_n^2 + (1-y_n) \cdot \max(0, m - d_n)^2)$$

Where:

  • $d_n$ = Euclidean distance between embeddings
  • $y_n$ = 1 if same vehicle, 0 otherwise
  • $m$ = margin (typically 0.5-1.0)

Circle Loss

Provides better convergence with adaptive margins:

$$L_{circle} = \log \left[ 1 + \sum_{j} e^{\gamma \alpha_j^n (s_j^n - \Delta_n)} \cdot \sum_{k} e^{-\gamma \alpha_k^p (s_k^p - \Delta_p)} \right]$$

Combined Training

$$L_{total} = L_{ID} + \lambda_1 L_{contrastive} + \lambda_2 L_{circle}$$

Usage

Python API

from src.reid.search import (
    _load_reid_model,
    _load_gallery_embeddings,
    _score_candidates,
    _filter_matches
)

# Load model
model = _load_reid_model(opts_path, checkpoint_path, device)

# Load gallery
gallery = _load_gallery_embeddings(
    gallery_dir, plate_id, model, input_size=224, device=device
)

# Score candidates
matches = _score_candidates(gallery, candidates, model, input_size, device)

# Filter by threshold
filtered = _filter_matches(matches, min_score=0.6, top_k=5)

Streamlit App

  1. Go to 🔍 Vehicle ReID page
  2. Register: Upload images/videos to build gallery
  3. Search: Select a plate and upload query video
  4. Gallery: View all registered vehicles

Configuration

Parameter Default Description
input_size 224 ReID input image size
batch_size 32 Embedding batch size
min_score 0.6 Minimum cosine similarity
top_k 5 Max matches per frame

Limitations

  • Similar Vehicles: Same model/color cars can be confused
  • Lighting: Performance drops in low light
  • Angle: Large viewpoint changes reduce accuracy
  • Occlusion: Partially visible vehicles harder to match
